10.5KV/6.3KV High Voltage Permanent Load Bank for Generator Test
Introduction:
Resistance/inductance/capacity/Portable Intelligent load bank
Intelligent AC load bank main used to test the capability and aging degree for high-power ups on-line, inverter, switch power and diesel generator set for electric power, telecom department and manufacturer. It can ensure the reliability of constant power charge that adopts uniformly stepped power input, energy consumption work model and forced air-cooling model. It is of high power density, no red hot phenomenon and automatic protection function overheated. It can’t be overheated and broken when the fans stop working. The complete machine can be operated simply and maintain convenient that adopts module design. It can test voltage and current according to client’s request, and provide scientific test measures for high-power AC equipment.
Main functions
1. Users can set adjustable discharge power according to capability parameter and test request.
2. Voltage and current value can be displayed with multi-functional digital meter.
3. AC load bank is of all kinds of specifications and series, and include resistance, inductive and capacitive load.
4. Two or more Intelligent AC Load Bank can operate in parallel.
5. It can make stable state test,
6. Remote control by software.
7. Testing data can be saved, data can form curve, to be printed.
AC1MW-3MW Load Bank Selection Table:
| Power | Capacity&Step | Power Factor | Voltage | Dimension (L*W*H) | Weight (KG) | Optional |
| 1MW | 1MW,Step 50KW | 1 | AC10.5KV/50Hz | 4000*2438*2591 | 3500 | (A)(B)(C)(D)(E) |
| 1.5MW | 1.5MW, Step 50KW | 1 | AC10.5KV/50Hz | 4000*2438*2591 | 4000 | (A)(B)(C)(D)(E) |
| 2MW | 2MW, Step 50KW | 1 | AC10.5KV/50Hz | 6058*2438*2591 | 5000 | (A)(B)(C)(D)(E), |
| 3MW | 3MW, Step 50KW | 1 | AC10.5KV/50Hz | 9000*2438*2591 | 6000 | (A)(B)(C)(D)(E) |
Optional :
1. Automatic Communication Control Port(A)
2. PC Software(B)
3. Transient Test Function(C)
4. PC Computer(D)
5. Brand Contactor(E)

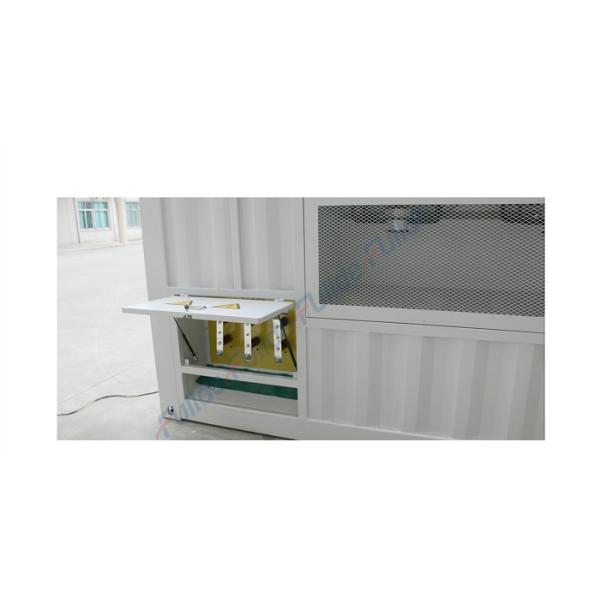

Detailed Pictures of Load Bank:
